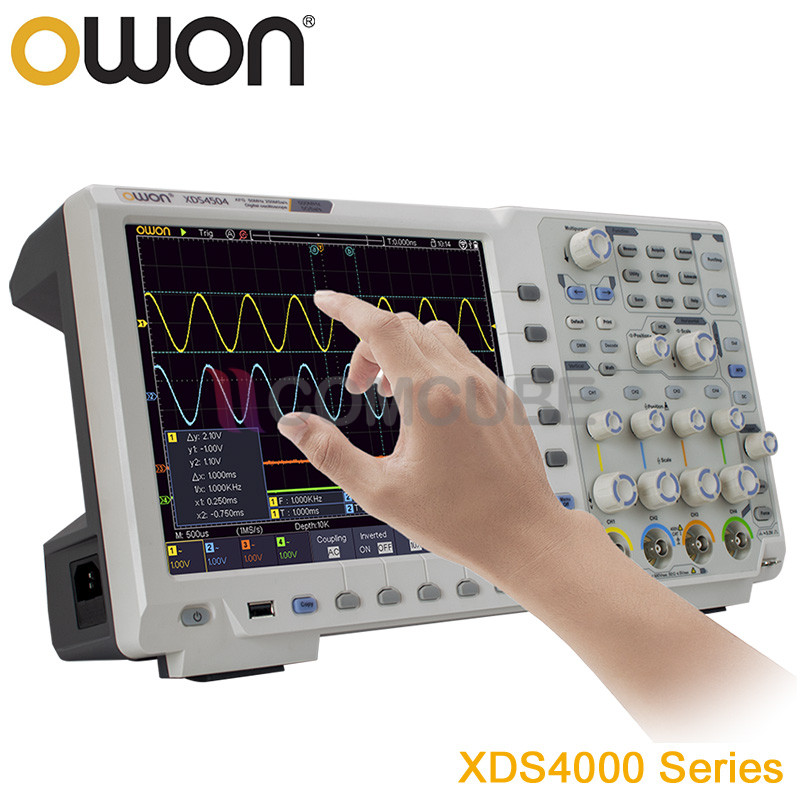

คำอธิบาย

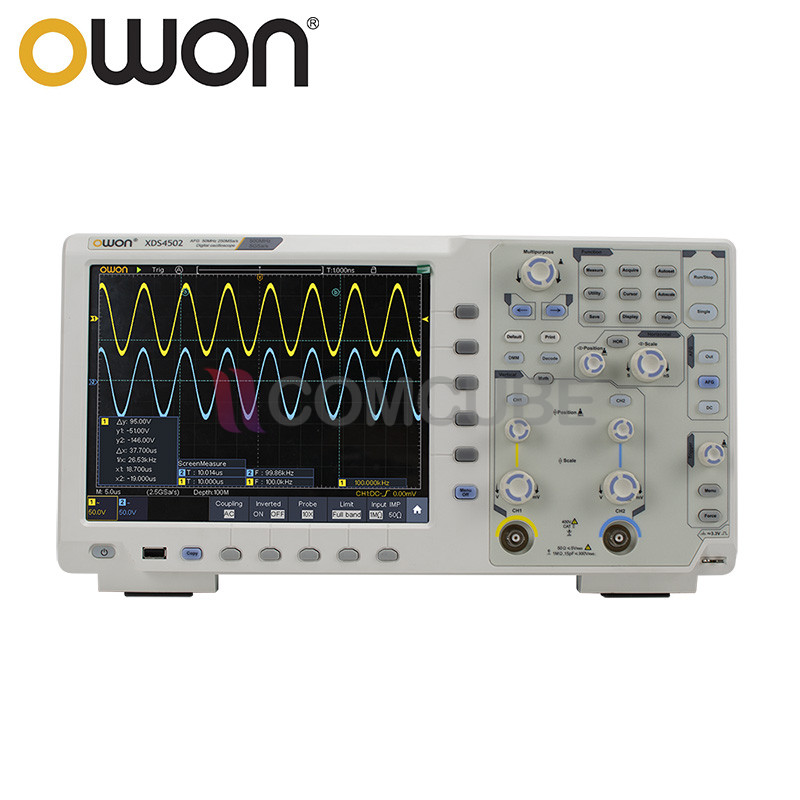

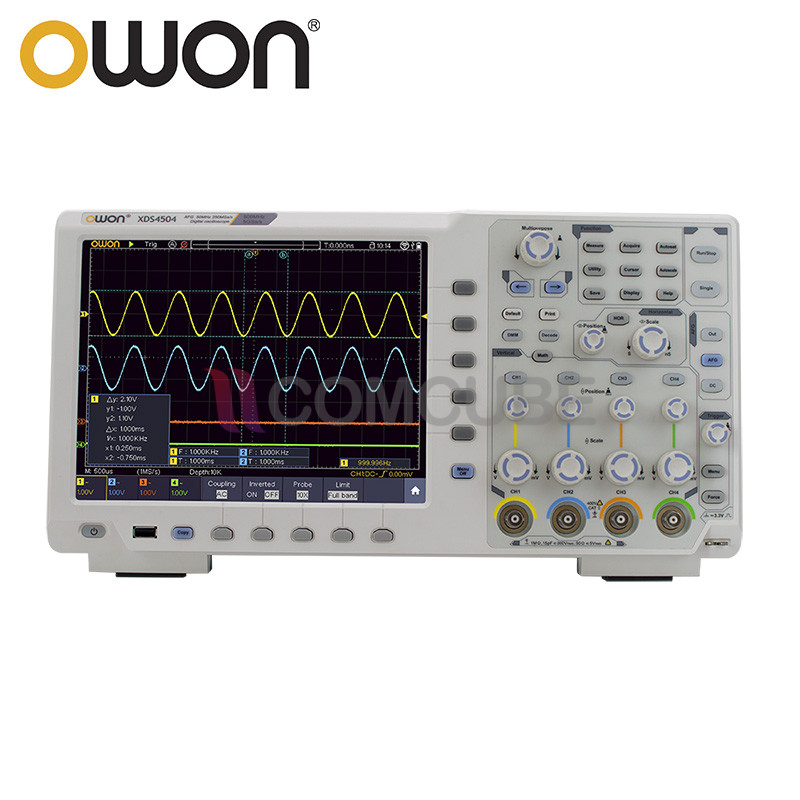

| รุ่น | แบนด์วิทธ์ | แชนแนล | Sample Rate |
| XDS4352 | 350MHz | 2 | 5GSa/s |
| XDS4354 | 350MHz | 4 | 5GSa/s |
| XDS4502 | 500MHz | 2 | 5GSa/s |
| XDS4504 | 500MHz | 4 | 5GSa/s |
Record length: 400M
Horizontal Scale (s/div): 500ps/div – 1000s/div, step by 1 – 2 – 5
จอแสดงผล: 10.4 inch LCD touch screen
Waveform Refresh Rate: 600，000 wfms/s
Vertical Sensitivity: 1MΩ :1mV/div~ 10V/div；50Ω : 1mV/div ~ 1V/div
Vertical Resolution(A/D): 8bits
Input impedance: 1MΩ±2%，in parallel with 15pF±5pF；50Ω ± 2%
Input coupling: DC, AC, Ground
Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN
Decoding Type (optional): RS232, I2C, SPI, CAN
Automatic measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, FRR、FRF、FFR、FFF、LRR、LRF、LFR、LFF、Phase A→B, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.
Waveform math: ＋, －, *, / ,FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function,
digital filter (low pass, high pass, band pass, band reject)
Waveform storage: 100 waveforms

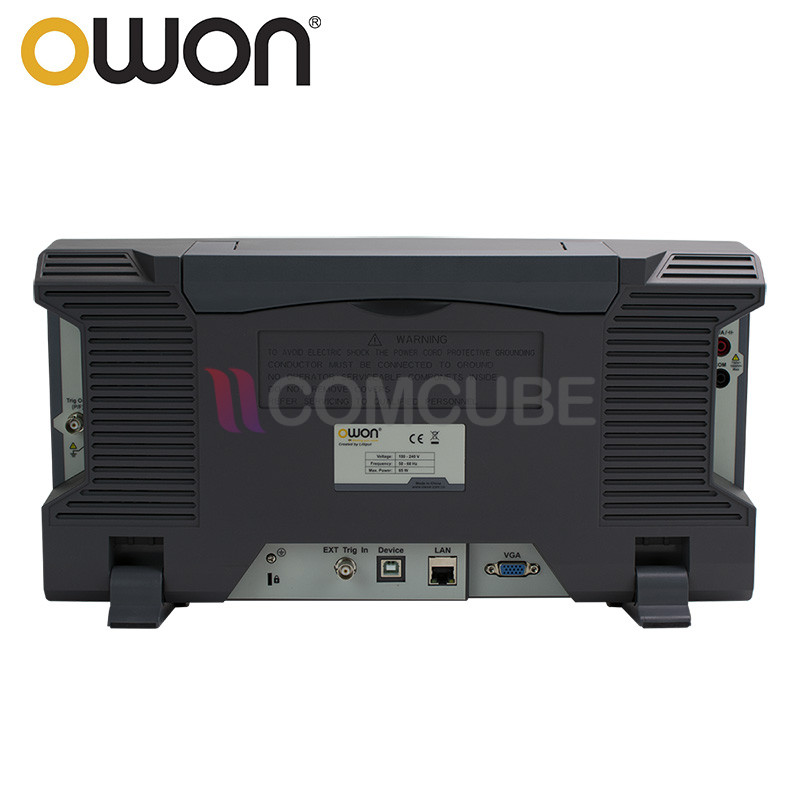

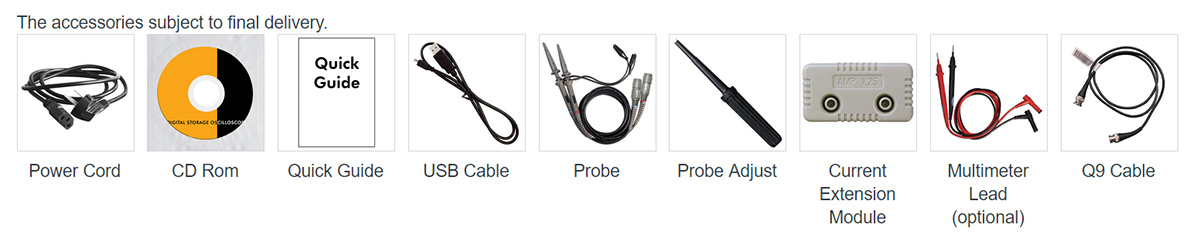

Communication interface: USB Host, USB Device; Trig Out(Pass/Fail); LAN port; VGA port; EXT Trig In
Printer compatibility: PictBridge
Dimension: 422 mm (W)×226 mm (H)×135 mm (D)
Weight: Approx. 5 kg (without accessories)
Arb Waveform Generator
Max Frequency Output: 50MHz
Sample Rate: 250MS/s
Channel: 1 channel
Vertical Resolution: 14bits
Amplitude Range: 2mVpp – 5Vpp（≦50MHz）; 2mVpp – 20Vpp（≦25MHz）
Waveform Length: 16K
Output Waveforms: Sine, Square, Pulse, Ramp, Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise,and others, total 64 built-in waveforms, and user-defined arbitrary waveform
