คำอธิบาย
| รุ่น | แบนด์วิทธ์ | Sample Rate | Vertical Resolution (A/D) | Record Length | Horizontal Scale (s/div) |
| XDS3202A | 200MHz | 1GS/s | 14 bits | 40M | 1ns/div – 1000s/div, step by 1 – 2 – 5 |
| XDS3102A | 100MHz | 1GS/s | 12 bits | 40M | 2ns/div – 1000s/div, step by 1 – 2 – 5 |
| XDS3062A | 60MHz | 1GS/s | 12 bits | 40M | 2ns/div – 1000s/div, step by 1 – 2 – 5 |
| XDS3102 | 100MHz | 1GS/s | 8 bits | 40M | 2ns/div – 1000s/div, step by 1 – 2 – 5 |
| XDS3202E | 200MHz | 1GS/s | 8 bits | 40M | 1ns/div – 1000 s/div, step by 1 – 2 – 5 |
| XDS3202 | 200MHz | 2GS/s | 8 bits | 40M | 1ns/div – 1000 s/div, step by 1 – 2 – 5 |
| XDS3302 | 300MHz | 2.5GS/s | 8 bits | 40M | 1ns/div – 1000 s/div, step by 1 – 2 – 5 |
Record length: 40M
Channel: 2 + 1 (external)
จอแสดงผล: 8″ color LCD, 800 x 600 pixels
Waveform Math: ＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding: I2C, SPI, RS232, and CAN (optional)

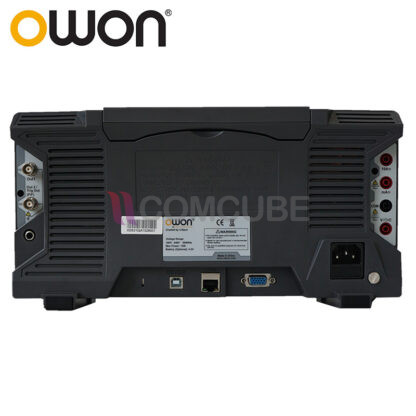

Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Power Supply: 100V – 240V AC, 50/60Hz, CAT II
Power Consumption: ＜24W
Fuse: 2A, T class, 250V
Battery (optional): 3.7V, 13200mAh
Dimension (W x H x D): 340 x 177 x 90 mm
Weight: 2.60 kg±200g
Optional Module / Function
VGA VGA+AV
WIF WiFi
AWG arb waveform generator
DMM digital multimeter
TOU Touch screen(capacitor-type)
Optional Decoding Kit
RS232 RS232
SPI SPI
I2C I2C
CAN CAN decoding
ไฟล์ข้อมูลสินค้าDATA SHEETUSER MANUALDATA SHEET 2
