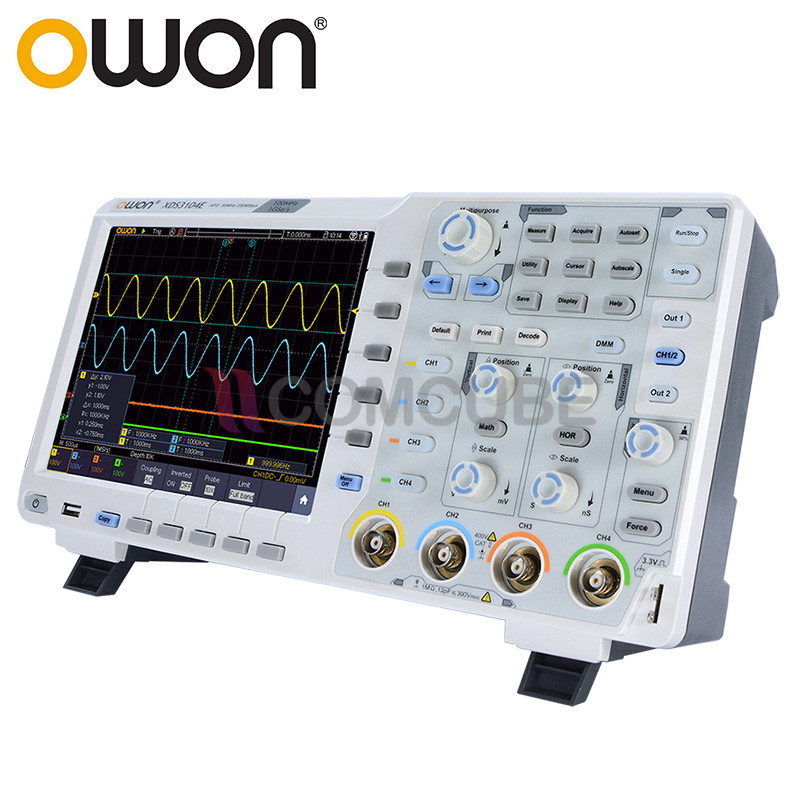

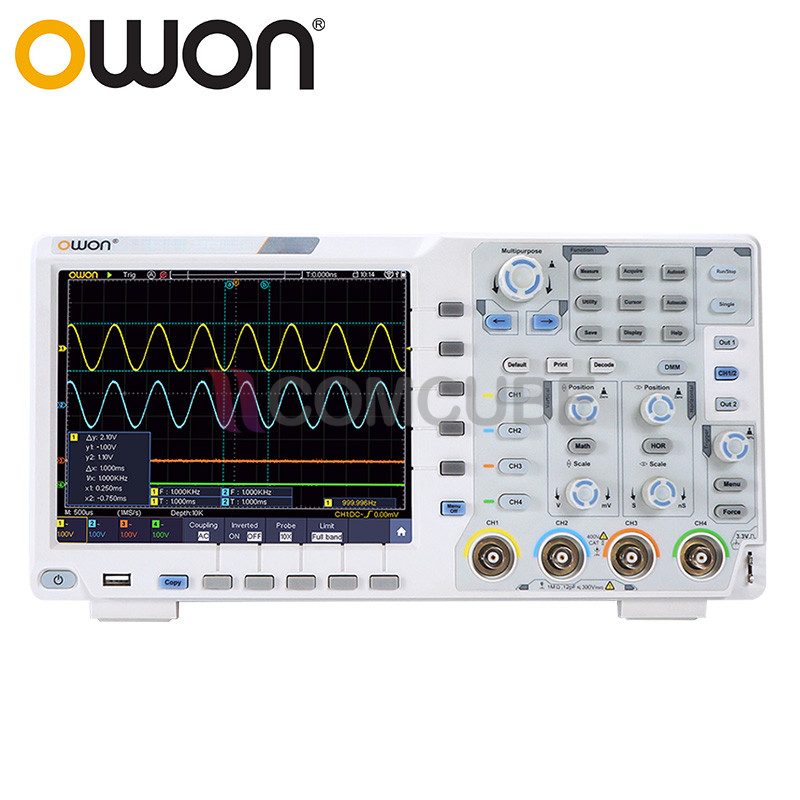

คำอธิบาย
| รุ่น | แบนด์วิทธ์ | Sample Rate | Vertical Resolution (A/D) | Horizontal Scale | Waveform Refresh Rate |
| XDS3064E | 60MHz | 1GS/s | 8 bits | 2ns/div – 1000s/div, step by 1 – 2 – 5 | 45,000 wfms/s |
| XDS3104E | 100MHz | 1GS/s | 8 bits | 2ns/div – 1000s/div, step by 1 – 2 – 5 | 45,000 wfms/s |
| XDS3064AE | 60MHz | 1GS/s | 14 bits | 2ns/div – 1000s/div, step by 1 – 2 – 5 | 45,000 wfms/s |
| XDS3104AE | 100MHz | 1GS/s | 14 bits | 2ns/div – 1000s/div, step by 1 – 2 – 5 | 45,000 wfms/s |
| XDS3104 | 100MHz | 1GS/s (500MS/s for each channel) | 8 bits | 1ns/div – 1000s/div, step by 1 – 2 – 5 | 70,000 wfms/s |
| XDS3204E | 200MHz | 1GS/s (500MS/s for each channel) | 8 bits | 1ns/div – 1000s/div, step by 1 – 2 – 5 | 70,000 wfms/s |
| XDS3204AE | 200MHz | 1GS/s | 14 bits | 1ns/div – 1000s/div, step by 1 – 2 – 5 | 70,000 wfms/s |
Record length: 40M
แชนแนล: 4
จอแสดงผล: ขนาด 8 นิ้ว color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy: ±2.5 ppm
Input Coupling: DC, AC, GND
Vertical Sensitivity: 1mV/div – 10V/div (at input)
Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding(optional): I2C, SPI, RS232, CAN
Trigger Mode: Auto, Normal, and Single
Vertical Range: ±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div)
Waveform Math: +, -, *, /, FFT, Intg, Diff, Sqrt, and user-defined function
Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter: available
แหล่งพลังงาน: 100V – 240V AC, 50/60Hz, CAT II
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mA
ขนาดเครื่อง: (W x H x D) 340mmx177mmx90mm
Optional Module / Function
VGA: VGA+AV port
WIF: Wifi
AWG: arb waveform generator (only apply to XDS3104E 、XDS3064E， XDS3014, XDS3204E)
DMM: digital multimeter
MTS: Touch screen(capacitor-type)
Optional Decoding Kit
RS232: RS232
SPI: SPI
I2C: I2C
CAN: CAN
ไฟล์ข้อมูลสินค้าDATA SHEETUSER MANUALDATA SHEET 2
