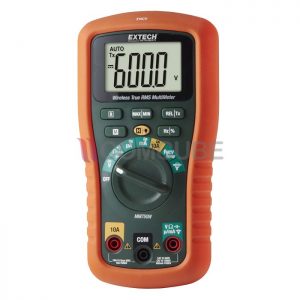

EXTECH MM750W มัลติมิเตอร์แบบ Wireless Datalogging (14 ฟังชั่น)

หรือ
QR Code

ช่วงการวัด Measuring Range
แรงดันไฟไฟ้า AC/D Voltage 0.1mV ถึง 1000V
กระแสไฟฟ้า AC/DC Current 0.1μA ถึง 10.00A
อุณหภูมิ -40 ถึง 1000°C
แรงดันไฟไฟ้าแบบไม่สัมผัส มากกว่า 100VAC
แบรนด์สินค้า EXTECH รุ่น MM750W

ตราสินค้า (Brand) ของสหรัฐอเมริกา
รหัสสินค้า: MM750W หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง

รายละเอียดเพิ่มเติม

ข้อมูลทางเทคนิคของ Multimeter EXTECH MM750W Data Logger
ช่วงการวัด Measuring Range
แรงดันไฟไฟ้าแบบไม่สัมผัส Non-Contact Voltage (NCV) มากกว่า 100VAC
แรงดันไฟไฟ้า AC Voltage 0.1mV ถึง 1000V
แรงดันไฟไฟ้า DC Voltage 0.1mV ถึง 1000V
กระแสไฟฟ้า AC Current 0.1μA ถึง 10.00A
กระแสไฟฟ้า DC Current 0.1μA ถึง 10.00A
กระแสไฟฟ้า AC μA Current 0.1μA ถึง 6000μA
กระแสไฟฟ้า DC μA Current 0.1μA ถึง 6000 μA
ความต้านทาน Resistance 0.1Ω ถึง 60.00MΩ
ตัวเก็บประจุ Capacitance 9.999nF ถึง 99.99mF
ความถี่ Frequency 9.999Hz ถึง 55.00MHz
อุณหภูมิ (Type K) -40 ถึง 1832°F (-40 ถึง 1000°C)

Duty Cycle 0.1 ถึง 99.9%
Diode Test 3.000V
Continuity Audible
บันทึกข้อมูลได้ Data Logger 15,360 ข้อมูล
ขนาดเครื่อง 188 x 96 x 56 มิลลิเมตร
น้ำหนัก 415 กรัม

คุณสมบัติ
แบรนด์สินค้า EXTECH รุ่น MM750W
พร้อม non-contact AC Voltage Detector (NCV)
จอแสดผลแบบ LCD 6000 count พร้อม backlit
ปิดเครื่องอัตโนมัติเมื่อไม่ได้ใช้งาน
แจ้งเตือนเมื่อระดับแบตเตอรี่ต่ำ
True RMS for accurate AC measurements
Relative Mode for Capacitance Zero and offset adjustment
ฟังชั่น Data Hold freezes the reading on the display

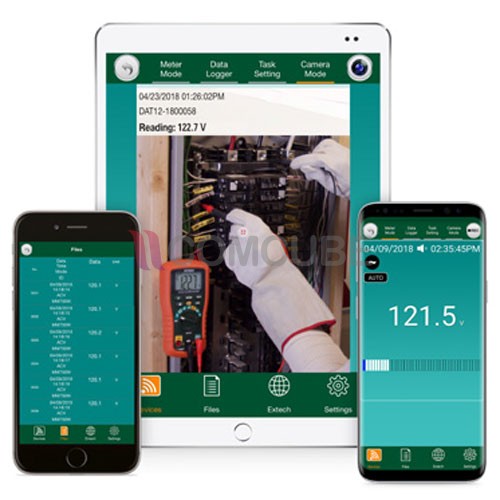

ฟรี iOS และ Android app
ฟังชั่นการวัดอุณหภูมิแบบ Type K
ความแม่นยำ ±0.6% basic DCV ฤccuracy
Wireless DMM function with Bluetooth® Datalogging
AC μA function ideal for HVAC flame rod current measurement
External clamp adapter input (1mV=1A; 600A AC/DC max)
MIN/MAX/DIF captures highest and lowest readings and the difference between them

ในชุดประกอบด้วย
Test leads
General purpose Type K bead wire temperature probe
Wireless Datalogging Module (DAT12)
9V battery
Soft case

ไฟล์ข้อมูลสินค้าDATA SHEET

DATA SHEET

Download
