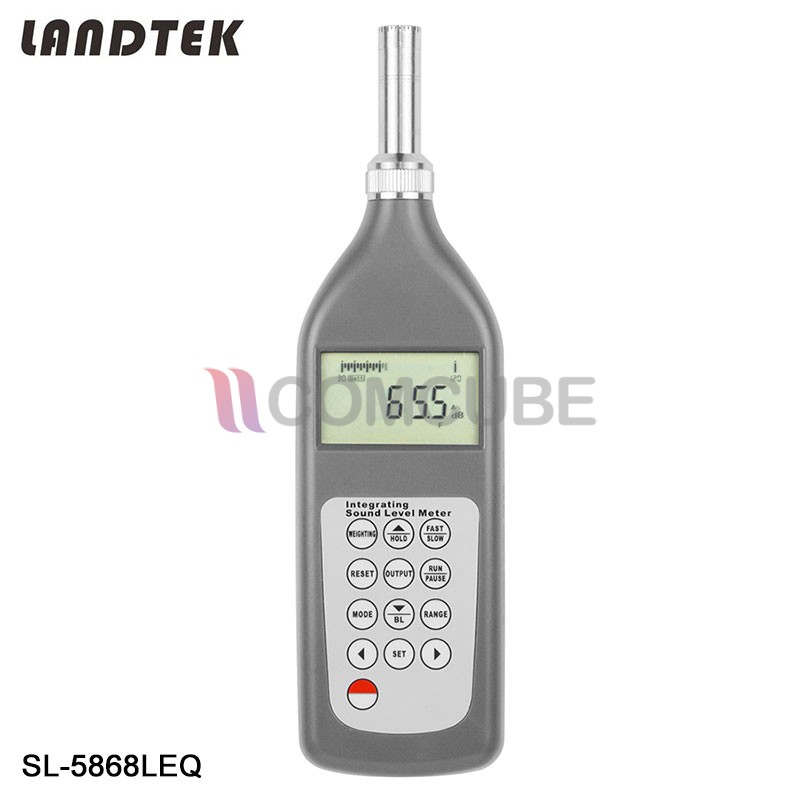

เครื่องวัดเสียงแบบ Integrating Sound Level Meter LANDTEK SL-5868LEQ

หรือ
QR Code

แบรนด์สินค้า LANDTEK รุ่น SL-5868LEQ
Time weighting F, S
เชื่อมต่อกับคอมพิวเตอร์ผ่าน USB
ช่วงการวัดเสียง Measuring Range: 25dB~130dB (A)
ความแม่นยำ: In accordance with IEC61672 standard, class 2

ตราสินค้า (Brand) ของประเทศจีน
รหัสสินค้า: SL-5868LEQ หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 7 ถึง 14 วัน
การจัดส่งสินค้า: ฟรีทาง

รายละเอียดเพิ่มเติม

ข้อมูลทางเทคนิคของเครื่องวัดเสียง LANDTEK SL-5868LEQ
ขนาดไมโครโฟน: Φ12.7mm (1/2′) test condenser microphone
Frequency weighting: A, C, and Lin(Linear)
ช่วงการวัดเสียง Measuring Range: 25dB~130dB (A)
Range control: Manual, three gears, linear range > 60dB
Testing Range:
30dB~90dB (dynamic scale display 10~100)
50dB~110dB (dynamic scale display 30~120)
70dB~130dB (dynamic scale display 50~140)
ความแม่นยำ: In accordance with IEC61672 standard, class 2
Time Weighting: Fast (F), Slow (S), Impulse (I)
Display: Large screen dynamic LCD, instantaneous sound level, with analogammeter display.
The output interface: AC signal output, USB data cable output
Calibration: Use class 1 sound level calibrator
Power Supply: 4×1.5V AAA Size (UM-4) Battery, External Power 6V
น้ำหนัก: 185g (Not Including Batteries)
ขนาดเครื่อง: 227x63x26 มิลลิเมตร
Operating Condition: Temperature: -10~50°C

คุณสมบัติ
แบรนด์สินค้า LANDTEK รุ่น SL-5868LEQ
Its performance is in accordance with GB/T 3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements. It also meets the JJG 188-2017 standard.
With the function of integration and statistics, 800 groups of single measurement and 6 days of regular measurement can be achieved. The stored data can be read and printed. The collected data can be checked when the regular measurement ispaused.
The two time weighting F, S can be selected.
The digital detection technology is used to replacesome traditional sound level meters, the stability andreliability are greatly improved.
Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
Optional Bluetooth printer for data printing.
เชื่อมต่อกับคอมพิวเตอร์ผ่าน USB
Provide Bluetooth data output choice.

ไฟล์ข้อมูลสินค้าUSER MANUALDATA SHEET

USER MANUAL

Download

DATA SHEET

Download
