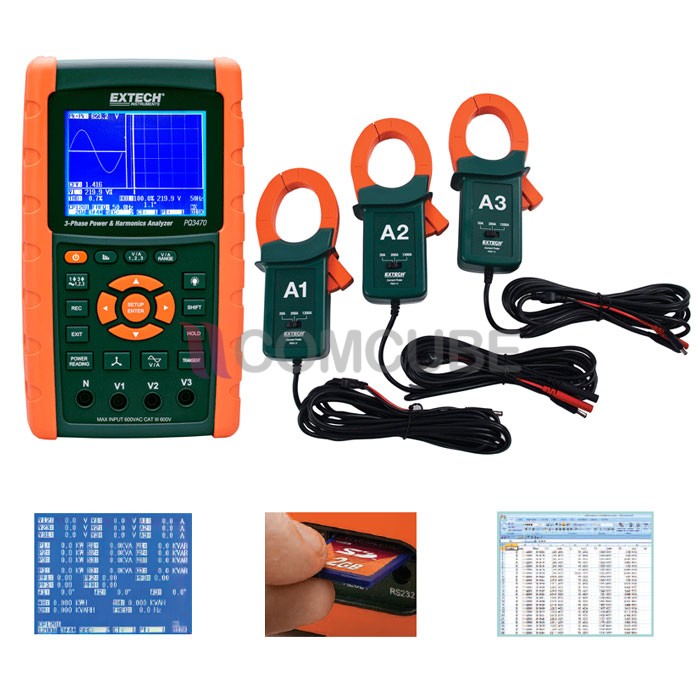

Power & Harmonics Analyzer/Datalogger EXTECH PQ3470-12 พร้อม 1200A Clamps

หรือ
QR Code

พร้อม 1200A Current Clamp Probes
Analysis of Total Harmonic Distortion (THD)
3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
Full system analysis with up to 35 parameters
แบรนด์สินค้า EXTECH รุ่น PQ3470-12

ตราสินค้า (Brand) ของสหรัฐอเมริกา
รหัสสินค้า: PQ3470-12 หมวดหมู่:
ระยะเวลาจัดส่งสินค้า: 15 ถึง 30 วัน
การจัดส่งสินค้า: ฟรีทาง

รายละเอียดเพิ่มเติม

รายละเอียดของ EXTECH PQ3470-12 เครื่องวิเคราะห์คุณภาพไฟฟ้าและฮาร์โมนิกส์
พร้อม 1200A Current Clamp Probes
Optional 200A Current Clamps or 3000A Flexible Current Probes (sold separately)
Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
Simultaneous display of Harmonics and Waveform
Analysis of Total Harmonic Distortion (THD)
Graphic Phase diagram with 3-Phase system parameters
3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
Wide sampling rate range (2 seconds to 2 hours)
Built-in Clock and Calendar
Large dot-matrix, sun-readable, graphical, backlit LCD with easy-to-use onscreen menu
Full system analysis with up to 35 parameters:
– V (phase-to-phase), V (phase-to-ground)
– A (phase-to-ground)
– KW / KVA / KVAR / PF (phase)
– KW / KVA / KVAR / PF (system)
– KWH / KVAH / KVARH / PFH (system)
– Phase angle
แบรนด์สินค้า EXTECH รุ่น PQ3470-12

ในชุดประกอบด้วย 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor, three 1200A current probes และ case

ข้อมูลทางเทคนิค

คุณสมบัติ ช่วงการวัด ความแม่นยำ
AC Voltage (True rms) 600.0V ±(0.5%rdg)
AC Current 1200A ±(0.5%rdg)
Active Power (MW) 9.999MW ±(1.0%rdg)
Apparent Power (MVA) 9.999MVA ±(1.0%rdg)
Reactive Power (MVAR) 9.999MVAR ±(1.0%rdg)
Power Factor 0.00 to 1.00 ±0.04
Frequency Range 45Hz to 65Hz ±0.1Hz
Phase -180° to +180.0° ±1°
Harmonics 1 to 50th ±2% (1 to 20); ±4% (21 to 31)
Crest Factor 1.00 to 99.99 ±(5%)
Current Clamp input 200mV, 300mV, 500mV ±(0.5%rdg)
1V, 2V, 3V; user-selectable
Peak AC Voltage Accuracy ±(5%)
Peak AC Current Accuracy ±(5%)
Active Power Energy (MWH) 0.0kWh to 9.999MWH ±(2.0%rdg)
Apparent Power Energy (MVAH) 0.0KVAh to 9.999MVAH ±(2.0%rdg)
Reactive Power Energy (MVARH) 0.0kVARh to 9.999MVARH ±(2.0%rdg)
Datalogging 30,000 readings (2GB SD memory Card)
Dimensions/Weight 225 x 125 x 64mm / 1010g
