คำอธิบาย

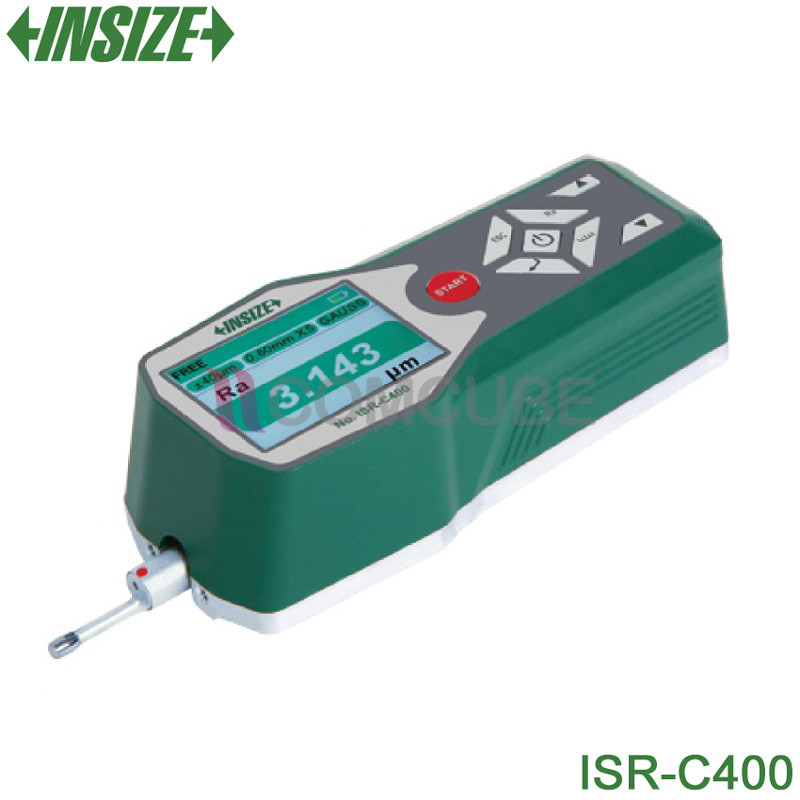

ข้อมูลทางเทคนิคของเครื่องวัดความเรียบผิว INSIZE ISR-C400
พารามิเตอร์ Ra, Rz, Rq, Ry, Rp, Rv, R3z, R3y, Rsk, Rku, Rc, Rpc, Rs, Rz(JIS), Rt, Rmax, Rz1max, Rk, Rpk, Rvk, Mr1, Mr2, Ry5, Rpkx, Rvkx, R5p, R5v, R10z, Rmr1, Rmr2, Rsm.
ช่วงการวัด 320µm (-160µm~160µm).
ความแม่นยำ ±10%
ความละเอียด (Ra) 0.001µm
โพรบ
type inductive.
stylus radius/angle 5µm/90°.
stylus material diamond.
Measuring force 4mN.
หน่วยการวัด µm/µin.
Cut off 0.25/0.8/2.5mm.
Number of cut-offs 1~5.
Moving speed 0.5mm/s, 1mm/s.
Memory 100 measurement results.
Output USB and bluetooth, RS232.
แหล่งพลังงาน built-in rechargeable battery.
ขนาดเครื่อง (L×W×H) 141×55×40mm
น้ำหนัก 400g
คุณสมบัติ
แบรนด์สินค้า INSIZE รุ่น ISR-C400
Communicate with PLC for automatic operation.
Display 1, 3 or 4 groups of measurement parameters.
Threshold alarm function.
Selectable measurement standards ISO-4287, ISO-4288, ANSI B46.1, DIN-4768, JIS-B601, ISO-21290, ISO-13565, GB/T-13288.
Automatic range change during measurement.
Display roughness value, profile and curve.
Support bluetooth printer, freely select the measurement parameters and curves.
Memory of maximum 100 results.
Data can be sent to Excel by connecting to computers via bluetooth or SPC cable.
ไฟล์ข้อมูลสินค้าDATA SHEET
