คำอธิบาย
ข้อมูลทางเทคนิคของ SHAHE ANT-60 80 Torque Wrench Tester
ความละเอียด:0.01N.m
ช่วงการวัดสูงสุด:60N.m/44.25ft.lb/531.04in.lb/611.82kgf.cm
Connector(inches):3/8 นิ้ว
Buzzer setting range(N.m):1.8~60N.m
ความแม่นยำ:±2% Counterclockwise:±2.5%
Data storage capacity:999.
Operation mode:Peak mode(P)/ Real-time mode(T)/ Preset mode(Pre).
Unit:N.m,kgf.cm,lbf.tf,lbf.in.
Ratchet head form:Two-way ratchet head.
Number of ratchet teeth:72 teeth.
Number of buttons:5.
Operating temperature:-10℃~60℃.
Storage temperature:-20℃~70℃.
คุณสมบัติ

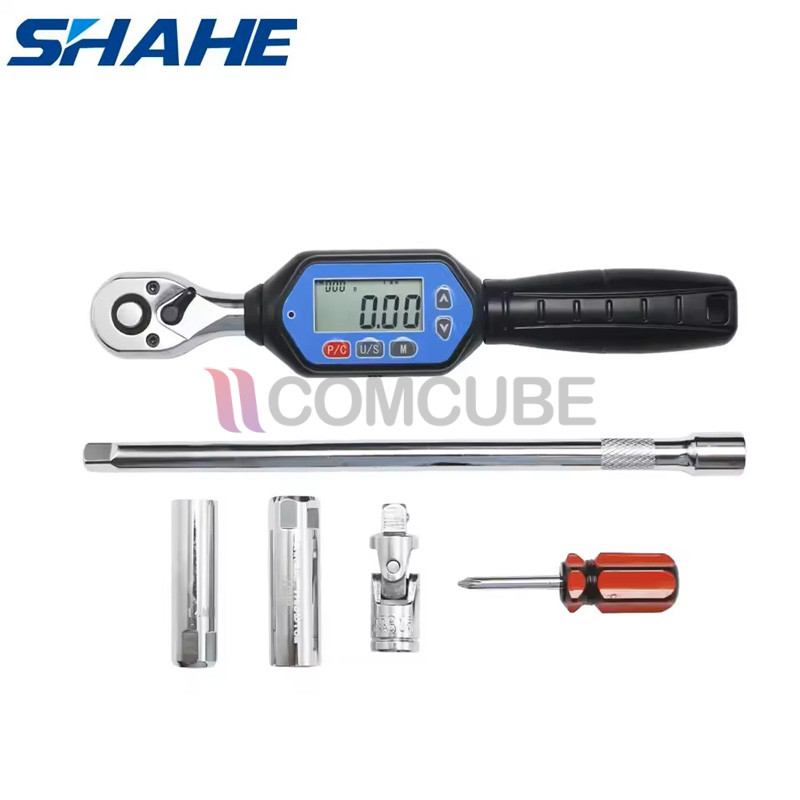

แบรนด์สินค้า SHAHE รุ่น ANT-60 80
Large screen, backlight function.
Clockwise 2%, counterclockwise 2.5% accuracy (20-100% of full range).
Both clockwise and counterclockwise can be operated.
Buzzer and LED indicator trigger when the predetermined torque value is reached (peak limit mode).
Four engineering units (N.m, kgf.cm, lbf.tf, lbf.in).
Measurement mode: real-time peak mode and preset mode three measurement modes.
999 groups can store record values.
Automatic shutdown in 5 minutes.
