คำอธิบาย
พร้อมใบสอบเทียบ Manufacture inspection certificate จากโรงงาน
ตรงตามมาตรฐาน Standard ISO1502
พร้อม GO และ NO-GO ในชิ้นเดียวกัน
Class 6H, 6G, 4H

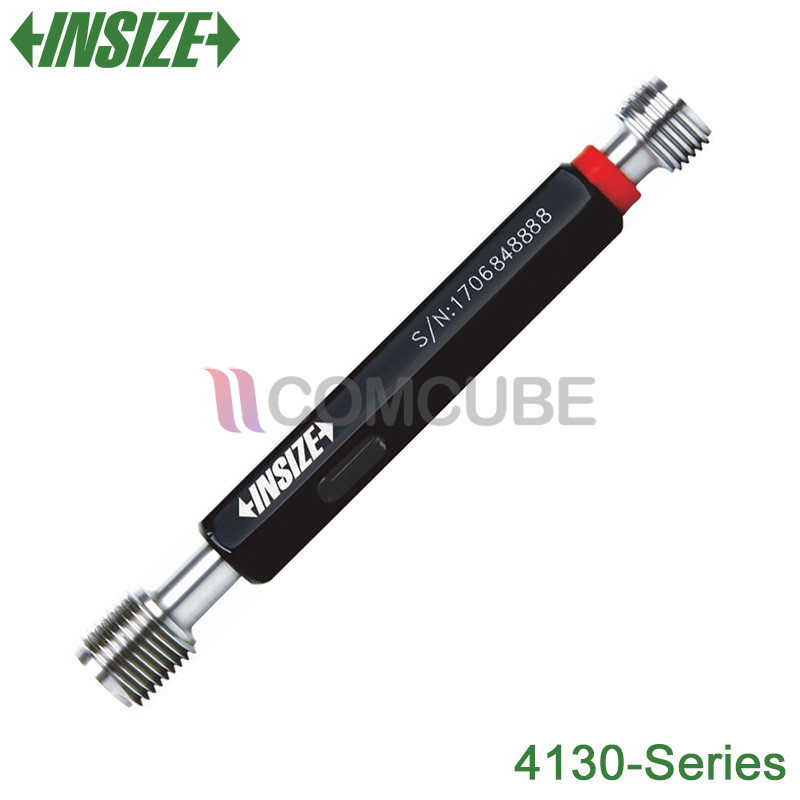

Metric Thread Plug Gage
แบรนด์สินค้า INSIZE รุ่น 4130
Class 6H
| รหัสสินค้า | Nominal diameter |
Pitch | ราคา |
| 4130-D8 | M0.8 | 0.2 | 970 |
| 4130-D9 | M0.9 | 0.225 | 970 |
| 4130-1 | M1 | 0.25 | 900 |
| 4130-1D1 | M1.1 | 0.25 | 950 |
| 4130-1D2 | M1.2 | 0.25 | 970 |
| 4130-1D4 | M1.4 | 0.3 | 920 |
| 4130-1D6 | M1.6 | 0.35 | 920 |
| 4130-1D7 | M1.7 | 0.35 | 970 |
| 4130-1D8 | M1.8 | 0.35 | 970 |
| 4130-2 | M2 | 0.4 | 800 |
| 4130-2D2 | M2.2 | 0.45 | 850 |
| 4130-2D3 | M2.3 | 0.4 | 850 |
| 4130-2D5 | M2.5 | 0.45 | 790 |
| 4130-2D6 | M2.6 | 0.45 | 840 |
| 4130-3 | M3 | 0.5 | 790 |
| 4130-3D5 | M3.5 | 0.6 | 960 |
| 4130-4 | M4 | 0.7 | 790 |
| 4130-4D5 | M4.5 | 0.75 | 840 |
| 4130-5 | M5 | 0.8 | 790 |
| 4130-6 | M6 | 1 | 790 |
| 4130-7 | M7 | 1 | 790 |
| 4130-8 | M8 | 1.25 | 790 |
| 4130-9 | M9 | 1.25 | 790 |
| 4130-10 | M10 | 1.5 | 840 |
| 4130-11 | M11 | 1.5 | 840 |
| 4130-12 | M12 | 1.75 | 850 |
| 4130-14 | M14 | 2 | 880 |
| 4130-16 | M16 | 2 | 880 |
| 4130-18 | M18 | 2.5 | 920 |
| 4130-20 | M20 | 2.5 | 960 |
| 4130-22 | M22 | 2.5 | 980 |
| 4130-24 | M24 | 3 | 1180 |
| 4130-27 | M27 | 3 | 1180 |
| 4130-30 | M30 | 3.5 | 1310 |
| 4130-33 | M33 | 3.5 | 1350 |
| 4130-36 | M36 | 4 | 1710 |
| 4130-39 | M39 | 4 | 1850 |
| 4130-42 | M42 | 4.5 | 1680 |
| 4130-45 | M45 | 4.5 | 1930 |
| 4130-48 | M48 | 5 | 2130 |
| 4130-52 | M52 | 5 | 3040 |
| 4130-56 | M56 | 5.5 | 3150 |
| 4130-60 | M60 | 5.5 | 3610 |
| 4130-64 | M64 | 6 | 3620 |
| 4130-68 | M68 | 6 | 3620 |
Class 6G
| รหัสสินค้า | Nominal diameter |
Pitch | ราคา |
| 4130-D8G | M0.8 | 0.2 | 970 |
| 4130-D9G | M0.9 | 0.225 | 970 |
| 4130-1G | M1 | 0.25 | 950 |
| 4130-1D1G | M1.1 | 0.25 | 950 |
| 4130-1D2G | M1.2 | 0.25 | 970 |
| 4130-1D4G | M1.4 | 0.3 | 970 |
| 4130-1D6G | M1.6 | 0.35 | 970 |
| 4130-1D7G | M1.7 | 0.35 | 970 |
| 4130-1D8G | M1.8 | 0.35 | 970 |
| 4130-2G | M2 | 0.4 | 850 |
| 4130-2D2G | M2.2 | 0.45 | 850 |
| 4130-2D3G | M2.3 | 0.4 | 850 |
| 4130-2D5G | M2.5 | 0.45 | 840 |
| 4130-2D6G | M2.6 | 0.45 | 840 |
| 4130-3G | M3 | 0.5 | 840 |
| 4130-3D5G | M3.5 | 0.6 | 1030 |
| 4130-4G | M4 | 0.7 | 840 |
| 4130-4D5G | M4.5 | 0.75 | 840 |
| 4130-5G | M5 | 0.8 | 840 |
| 4130-6G | M6 | 1 | 840 |
| 4130-7G | M7 | 1 | 950 |
| 4130-8G | M8 | 1.25 | 840 |
| 4130-9G | M9 | 1.25 | 950 |
| 4130-10G | M10 | 1.5 | 920 |
| 4130-11G | M11 | 1.5 | 1040 |
| 4130-12G | M12 | 1.75 | 920 |
| 4130-14G | M14 | 2 | 940 |
| 4130-16G | M16 | 2 | 940 |
| 4130-18G | M18 | 2.5 | 1020 |
| 4130-20G | M20 | 2.5 | 1040 |
| 4130-22G | M22 | 2.5 | 1060 |
| 4130-24G | M24 | 3 | 1280 |
| 4130-27G | M27 | 3 | 1280 |
| 4130-30G | M30 | 3.5 | 1480 |
| 4130-33G | M33 | 3.5 | 1480 |
| 4130-36G | M36 | 4 | 2030 |
| 4130-39G | M39 | 4 | 2040 |
| 4130-42G | M42 | 4.5 | 1860 |
| 4130-45G | M45 | 4.5 | 1930 |
| 4130-48G | M48 | 5 | 2470 |
| 4130-52G | M52 | 5 | 2990 |
| 4130-56G | M56 | 5.5 | 3130 |
| 4130-60G | M60 | 5.5 | 3430 |
| 4130-64G | M64 | 6 | 3620 |
| 4130-68G | M68 | 6 | 3620 |
Class 4H
| รหัสสินค้า | Nominal diameter |
Pitch | ราคา |
| 4130-D8H | M0.8 | 0.2 | 1160 |
| 4130-D9H | M0.9 | 0.225 | 1160 |
| 4130-1H | M1 | 0.25 | 1170 |
| 4130-1D1H | M1.1 | 0.25 | 970 |
| 4130-1D2H | M1.2 | 0.25 | 1180 |
| 4130-1D4H | M1.4 | 0.3 | 1180 |
| 4130-1D6H | M1.6 | 0.35 | 1180 |
| 4130-1D7H | M1.7 | 0.35 | 1180 |
| 4130-1D8H | M1.8 | 0.35 | 1180 |
| 4130-2H | M2 | 0.4 | 1000 |
| 4130-2D2H | M2.2 | 0.45 | 1000 |
| 4130-2D3H | M2.3 | 0.4 | 1000 |
| 4130-2D5H | M2.5 | 0.45 | 990 |
| 4130-2D6H | M2.6 | 0.45 | 990 |
| 4130-3H | M3 | 0.5 | 990 |
| 4130-3D5H | M3.5 | 0.6 | 1230 |
| 4130-4H | M4 | 0.7 | 960 |
| 4130-4D5H | M4.5 | 0.75 | 960 |
| 4130-5H | M5 | 0.8 | 960 |
| 4130-6H | M6 | 1 | 1070 |
| 4130-7H | M7 | 1 | 1200 |
| 4130-8H | M8 | 1.25 | 1070 |
| 4130-9H | M9 | 1.25 | 1200 |
| 4130-10H | M10 | 1.5 | 1070 |
| 4130-11H | M11 | 1.5 | 1200 |
| 4130-12H | M12 | 1.75 | 1080 |
| 4130-14H | M14 | 2 | 1110 |
| 4130-16H | M16 | 2 | 1120 |
| 4130-18H | M18 | 2.5 | 1170 |
| 4130-20H | M20 | 2.5 | 1200 |
| 4130-22H | M22 | 2.5 | 1200 |
| 4130-24H | M24 | 3 | 1440 |
| 4130-27H | M27 | 3 | 1440 |
| 4130-30H | M30 | 3.5 | 1840 |
| 4130-33H | M33 | 3.5 | 1860 |
| 4130-36H | M36 | 4 | 2260 |
| 4130-39H | M39 | 4 | 2260 |
| 4130-42H | M42 | 4.5 | 2280 |
| 4130-45H | M45 | 4.5 | 2300 |
| 4130-48H | M48 | 5 | 3010 |
| 4130-52H | M52 | 5 | 3510 |
| 4130-56H | M56 | 5.5 | 3750 |
| 4130-60H | M60 | 5.5 | 4170 |
| 4130-64H | M64 | 6 | 4460 |
| 4130-68H | M68 | 6 | 4460 |
ไฟล์ข้อมูลสินค้าDATA SHEET
