คำอธิบาย
ข้อมูลทางเทคนิคของ UNI-T UT208B Clamp Meter
AC current (A) 1000A
DC current (A) 1000A
AC current frequency response 40Hz~400Hz
Inrush current (A) 1000A
AC voltage (V) 1000V
DC voltage (V) 1000V
Low pas filter (LPF ACV) 1000V
AC voltage frequency response 40Hz~400Hz
LoZ ACV 1000V
Resistance (Ω) 60MΩ
Capacitance (F) 60mF
Temperature -40℃~1000℃ หรือ -40℉~1832℉
Low voltage frequency (Hz) 10Hz~1MHz
Duty cycle (%) 10%~90%
Analog bar 31
Flexible current probe (optional) Extends up to 3000A
Zero mode
Display count 6000
Jaw opening 42mm
แหล่งพลังงาน 1.5V battery (R03) x 3
ขนาดจอแสดงผล 43mm x 45mm
น้ำหนัก UT205E/UT206B: 465g; UT207B/UT208B: 420g
ขนาดเครื่อง 272mm x 81mm x 43.5mm
ภายในกล่องประกอบด้วย Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual
คุณสมบัติ

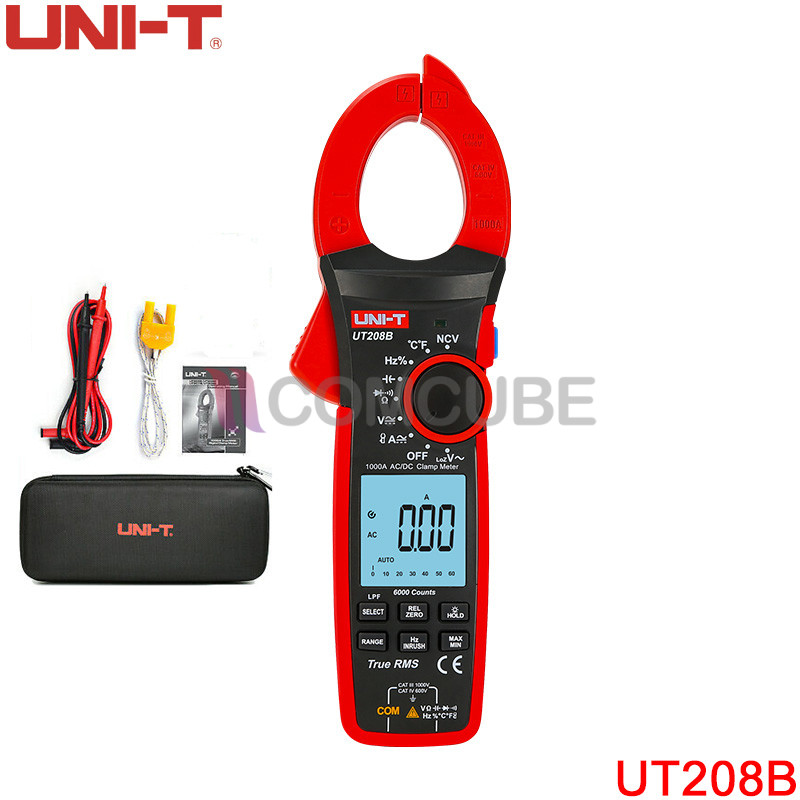

แบรนด์สินค้า UNI-T รุ่น UT208B
Certifications: CE, UKCA, cETLus
Flashlight button: Short press this button to turn on/off the flashlight
NCV Multi-Segment จอแสดงผล and audio/visual alarm
True RMS/Auto backlight
NCV/Function retention
ไฟล์ข้อมูลสินค้าDATA SHEET
